BTI Inc - Model 2 Tiny-Vac - Hand Held Pneumatic Vacuum Cleaners

Hand Held pneumatic Vacuum Cleaners

Model No. 2 Series

Compact, industrial, hand-held, aluminum body, pneumatic vacuum cleaners

pick up metal chips, filings, loose solder waste,

wire trimmings and other debris, wherever standard shop air is available, using 1/4" NPT for your air fitting.

Simple push button on/off valve is the only moving part.

All models have durable replaceable fabric bags which feature Velcro® closures for easy emptying.

Model No. 2 Series

Performance Data – All Vacuum Models
Applied Air Pressure		Inches of Vacuum
70	90.6	3.7
80	102.2	4.1
95	110.2	4.5
100	115.7	4.7
105	120.7	4.8
Performance may vary depending on the application.

	Part No	Description			Price	Add To Cart

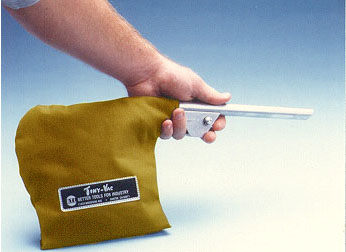

	2 - Tiny-Vac	Fitted with the standard No.WR2-5 vinyl coated fabric bag.			$53.10
	2V - Tiny-Vac	Fitted with the water resistant No.WR2-5 vinyl coated fabric bag.			$56.20
	2VL	Fitted with the larger size No.WR2-6 water-resistant vinyl coated bag			$60.30
*Replacement Bags* *Water resistant vinyl coated bag is recommended for use with wet chips or fine, granulated materials.

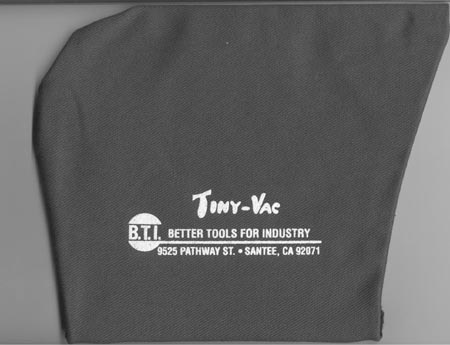

	2-5	Standard fabric (blue)			$15.30
	WR2-5	Vinyl coated (gold)*			$18.50
	WR2-6	Large vinyl coated (gold)*			$22.60
*Replacement Parts*
	BT2-3C	Bag clamp			$2.40
	BT2-O	Rep. O-Rind for Trigger (BT2-1V)			$.30
	BT2-CLP	On/off valve			$.30
	BT2-1V	On/off valve			$10.20
*Attachments*
	BT2-1X	3" Wide Aluminum Nozzle			$20.50
	Flexible Vinyl Extension. Has 3" long aluminum tip. Four tube lengths: 12", 18", 24", 36"			BT2-12	$9.20
				BT2-18	$12.20
				BT2-24	$13.50
				BT2-36	$16.50
	BT2-CRV	Crevice Tool Attaches to Flexible Extensions above			10.90
	BT2-2P		Anti-Scratch Tip		$9.30
	BT2-2A		3" in. Long x 3/4 Dia. Alum. Tip		5.50
	BT2-STB(H)	1 1/2" Round Brush Assembly (H)Horsehair			$20.40	BT2-STB(H)
