Shop Vacs

Compact, industrial, hand-held, aluminum body, pneumatic vacuum cleaners pick up metal chips, filings, loose solder waste, wire trimmings and other debris, wherever standard shop air is available, using 1/4" NPT for your air fitting. Simple push button on/off valve is the only moving part. All models have durable replaceable fabric bags which feature Velcro® closures for easy emptying.

Model 2 Series 3/4in. Dia Chip Capacity

Model 3 Series 1/2 Dia. Chip Capacity

Model 4 Series 5/8 Dia. Chip Capacity

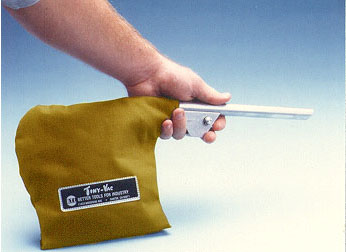

A typical application shown below

Performance Data – All Vacuum Models
Applied Air Pressure		Inches of Vacuum
70	90.6	3.7
80	102.2	4.1
95	110.2	4.5
100	115.7	4.7
105	120.7	4.8
Performance may vary depending on the application.
