CNC Lathes

previous page                                                                                               next page

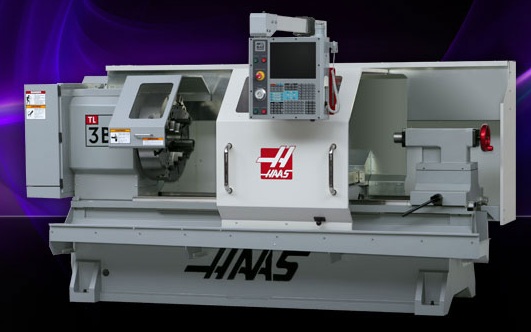

TL-3B   -

CNC/Manual Toolroom Lathe; 30" x 60" (762 x 1524 mm) max capacity, 30" (762 mm) swing, 30 hp (22.4 kW), 650 rpm, front and rearA2-15 spindle noses, 8.5" (216 mm) spindle bore, up to 25" (635 mm) dual chuck capability, 2-speed gearbox, Intuitive Programming System, 1 MB program memory, memory lock keyswitch, 15" color LCD monitor and USB port. No workholding, toolpost or toolholders included. Operates on three-phase power only.
SWING DIAMETERS.A.E.Metric
Over Front Apron 30.0 "  762 mm
Over Cross Slide 18.5 "  470 mm
CAPACITIESS.A.E.Metric
Chuck (optional) 25 "  635 mm
Max Cutting Diameter 30 "  762 mm
Max Cutting Length 60 "  1524 mm
Between Centers 60 "  1524 mm
TRAVELS & FEEDRATESS.A.E.Metric
X Axis 16 "  406 mm
Z Axis 60 "  1524 mm

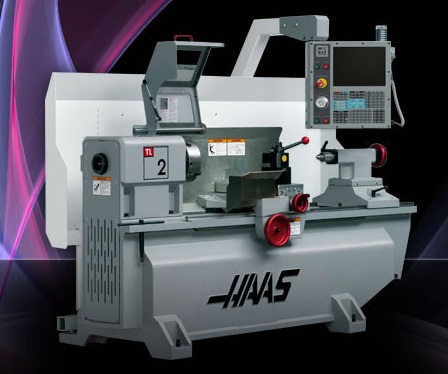

TL-2   -  CNC/Manual Toolroom Lathe; 16" x 48" (406 x 1219 mm) max capacity, 16" (406 mm) swing, 12 hp (8.9 kW) vector drive, 2000 rpm, A2-6 spindle, Intuitive Programming System, 1 MB program memory, memory lock keyswitch, 15" color LCD monitor and USB port. No workholding, toolpost or toolholders included. Operates on single- or three-phase power. Enclosure required for CE compliance.


SWING DIAMETERS.A.E.Metric
Over Front Apron 16.0 "  406 mm
Over Cross Slide 11.1 "  282 mm
CAPACITIESS.A.E.Metric
Chuck (optional) 10 "  254 mm
Max Cutting Diameter 16 "  406 mm
Max Cutting Length 48 "  1219 mm
Between Centers 48 "  1219 mm
TRAVELS & FEEDRATESS.A.E.Metric
X Axis 8 "  203 mm
Z Axis 48 "  1219 mm
