Press Brakes

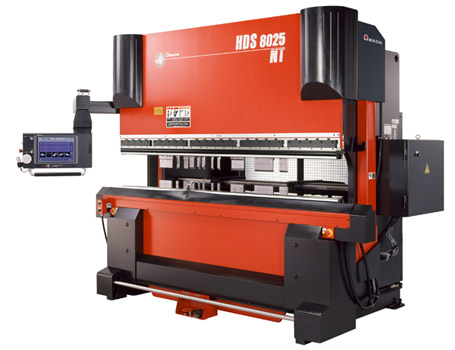

2009 Amada HDS-8025
| Specifications |
| Model |
8025 |
| Capacity |
kN {ton} |
784 {80} |
| Bending length |
mm |
2600 (8 ft) |
| Stoke length |
mm |
200 (8 in) |
| Control axis |
9 axis (D1, D2, L1, L2, Y1, Z1, Z2, CC) |
|
• Hybrid drive system incorporates AC servo motor driven bidirectional, high efficiency pumps providing high speed ram movement
• CNC controlled hydraulic cylinders located in lower beam eliminate tool shimming due to ram deflection.
• Windows based, touch screen control provides for transfer of tool setup data, bend sequences, and 3D simulation between control and network server.
• Accurate, high speed 5-axis backgauge reduces positioning time and easily handles staging of complex parts.
| Power Capacity |
KVA |
12 |
| Frame Gap |
mm |
415 |
|
